SUN2000-5KTL-L1 Basic System Architecture
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system. – Generator or Utility – PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.

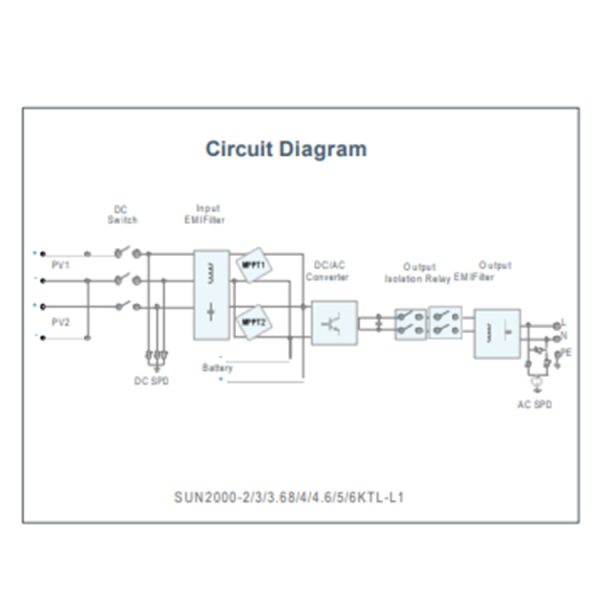

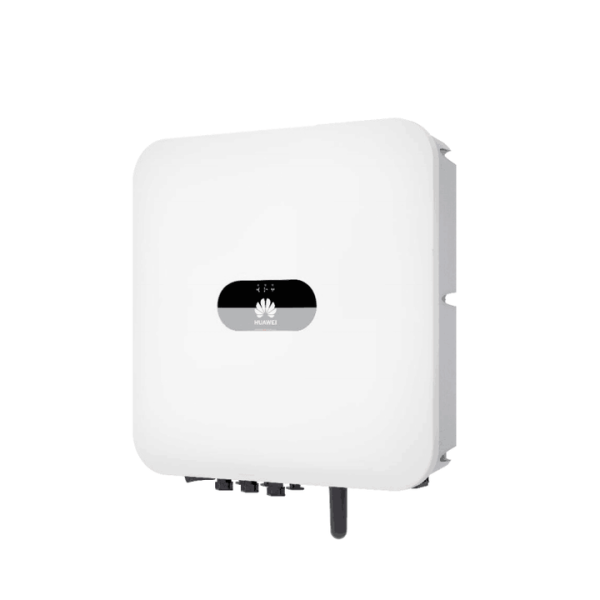

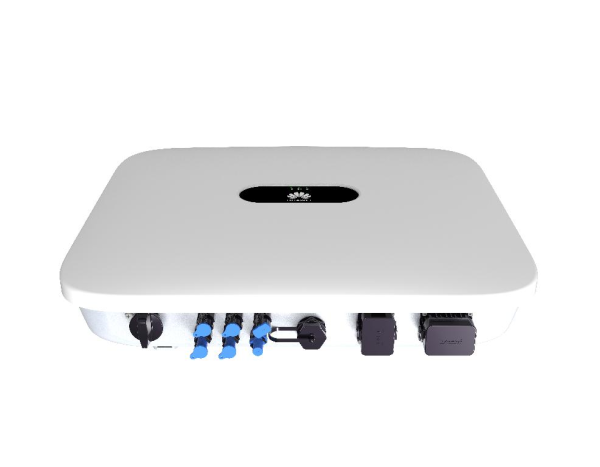

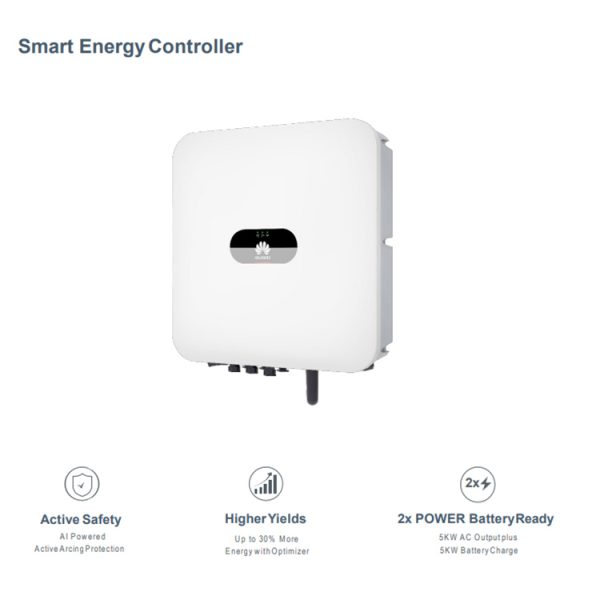

Huawei 5Kw Single Phase Solar Inverter Key product features
- Colorful touch LCD, IP65 protection degree
- 6 time periods for battery charging/discharging
- Max. charging/discharging current of 190A
- Max.16pcs parallel
- DC couple and AC couple to retrofit existing solar system
- Support storing energy from diesel generator
- Max. battery charge efficiency of 95.4%
- Unique Smart Load application and Grid peak shaving function
- 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
- Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO etc.
What can Vesol do?
- High Quality Products
- DDP Service
- Friendly and Professional Customer Service
- Solar system solution design
- Solar inverter, lithium battery storage system also are available.
- Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )

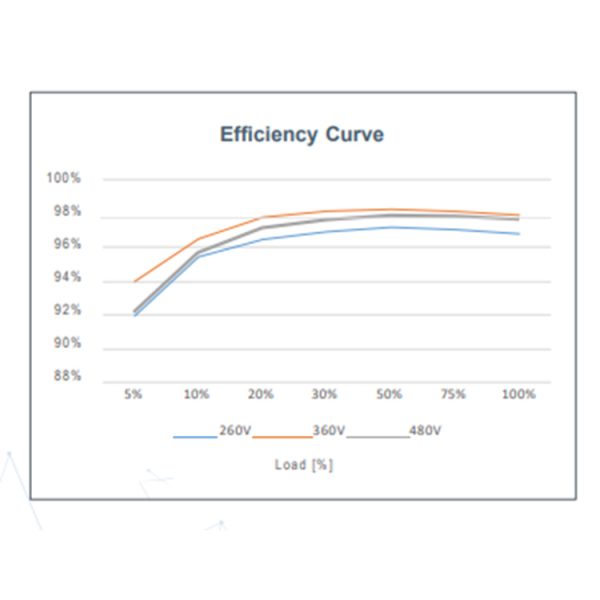

Technical Specification | SUN2000-3KTL-L1 | SUN2000-4KTL-L1 | SUN2000-5KTL-L1 | SUN2000-6KTL-L1 |
Efficiency | ||||
Max. efficiency | 98.3 % | 98.4 % | 98.4 % | 98.4 % |
European weighted efficiency | 97.3 % | 97.5 % | 97.8 % | 97.8 % |
Input (PV) | ||||
Recommended max. PV power | 4500 Wp | 6000 Wp | 7500 Wp | 9000 Wp |
Max. input voltage | 600 V | |||
Start-up voltage | 100 V | |||
MPPT operating voltage range | 90 V – 560 V | |||
Rated input voltage | 360 V | |||
Max. input current per MPPT | 12.5 A | |||
Max. short-circuit current | 18 A | |||
Number of MPP trackers | 2 | |||
Max. input number per MPP tracker | 2 | |||
Input (DC Battery) | ||||
Compatible Battery | HUAWEI Smart LUNA2000 ESS Battery 5kWh – 30kWh | |||
Operating voltage range | 350 – 560 Vdc | |||
Max operating current | 15 A | |||
Max charge Power | 5000 W | |||
Max discharge Power | 3300 W | 4400 W | 5000 W | 5000 W |
Output (On Grid) | ||||
Grid connection | Single phase | |||
Rated output power | 3300 W | 4400 W | 5000 W | 6000 W |
Max. apparent power | 3300 VA | 4400 VA | 5000 VA | 6000 VA |
Rated output voltage | 220 Vac / 230 Vac / 240 Vac | |||
Rated AC grid frequency | 50 Hz / 60 Hz | |||
Max. output current | 15 A | 20 A | 25 A | 27.3 A |
Adjustable power factor | 0.8 leading … 0.8 lagging | |||
Max. total harmonic distortion | ≤ 3 % | |||
Backup Box (Optional) | Yes（via Backup Box-B0) | |||
（Backup Box-B0） | ||||
Maximum apparent power | 3000 VA | 4000 VA | 5000 VA | 5000 VA |
Rated output voltage | 220 V / 230 V | |||
Maximum output current | 13.6 A | 18.2 A | 22.7 A | 22.7 A |
Power factor range | 0.8 leading … 0.8 lagging | |||
Protection & Feature | ||||
Anti-Islanding protection | Yes | |||
DC reverse polarity protection | Yes | |||
Insulation monitoring | Yes | |||
DC surge protection | Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 | |||
AC surge protection | Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 | |||
Residual current monitoring | Yes | |||
AC overcurrent protection | Yes | |||
AC short-circuit protection | Yes | |||
AC overvoltage protection | Yes | |||
Over-heat protection | Yes | |||
Battery reverse charging from grid | Yes | |||
Arc fault protection | Yes | |||
General Data | ||||
Operating temperature range | -25 ~ +60 °C | |||
Relative operating humidity | 0 %RH～100 %RH | |||
Max. operating altitude | 4,000 m (13,123 ft.) (Derating above 2000 m) | |||
Cooling | Natural convection | |||
Display | LED indicators; integrated WLAN + FusionSolar APP | |||
Communication | RS485, WLAN via inverter built-in WLAN module Ethernet via Smart Dongle-WLAN-FE (Optional); 4G / 3G / 2G via Smart Dongle-4G (Optional) | |||
Weight (incl. mounting bracket) | 12.0 kg (26.5 lb) | |||
Dimension (incl. mounting bracket) | 365mm * 365mm * 156 mm (14.4 x 14.4 x 6.1 inch) | |||
Degree of protection | IP65 | |||
Optimizer Compatibility | ||||
DC MBUS compatible optimizer | SUN2000-450W-P | |||
Standard Compliance (more available upon request) | ||||
Safety | EN/IEC 62109-1, EN/IEC 62109-2 | |||
Grid connection standards | G98, G99, EN 50549-1, CEI 0-21, VDE-AR-N-4105, AS 4777.2, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, IEC61727, IEC62116 | |||
