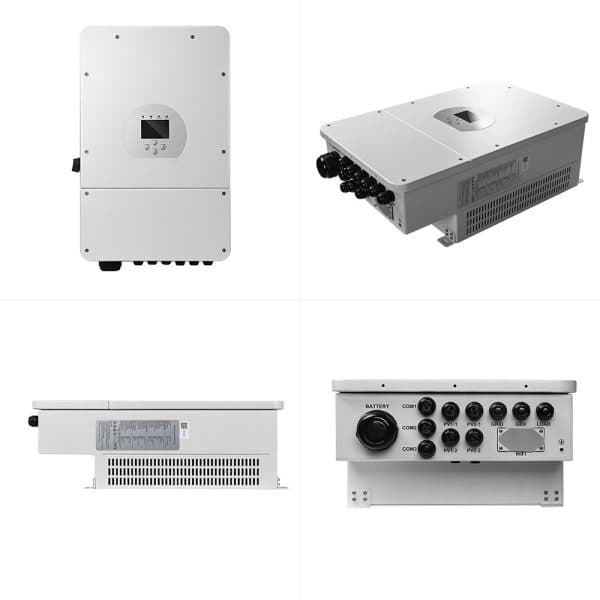

16kw Deye Inverter Product Description
1.Deye inverter is easy to operate, convenient and fully functional.
2.Suitable for solar energy system, household, commercial, agricultural, outdoor use, etc.
3.Smart diagnosis, high switch frequency, WiFi/GPRS Real time monitoring.
4.High efficiency up to 99%. Ingress protection IP65.
5.App store support IOS/Android.
6.Vesol solar energy system product supply chain has received favors and praises from various overseas home use customers, small business customers , government projects.
16 Kw Deye Inverter Basic System Architecture
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system. – Generator or Utility – PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.
Deye 16kw Single Phase Inverter Features
- Colorful touch LCD, IP65 protection degree
- 6 time periods for battery charging/discharging
- Max. charging/discharging current of 190A
- Max.16pcs parallel
- DC couple and AC couple to retrofit existing solar system
- Support storing energy from diesel generator
- Max. battery charge efficiency of 95.4%
- Unique Smart Load application and Grid peak shaving function
- 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
- Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO etc.
What can Vesol do?
- High Quality Products
- DDP Service
- Friendly and Professional Customer Service
- Solar system solution design
- Solar inverter, lithium battery storage system also are available.
- Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )
Model | SUN-12K-SG01LP1-EU | SUN-14K-SG01LP1-EU | SUN-16K-SG01LP1-EU |
Battery Input Data | |||
Battery Type | Lead-acid or Lithium-ion | ||
Battery Voltage Range (V) | 40-60 | ||
Max. Charging Current (A) | 220 | 250 | 290 |
Max. Discharging Current (A) | 220 | 250 | 290 |
Charging Curve | 3 Stages / Equalization | ||
External Temperature Sensor | Yes | ||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||
PV String Input Data | |||
Max. DC Input Power (W) | 15600 | 18200 | 20800 |
Max. DC Input Voltage (V) | 500 | ||
Start-up Voltage (V) | 125 | ||
MPPT Range (V) | 150-425 | ||
Rated DC Input Voltage (V) | 370 | ||
PV Input Current (A) | 26+26+26 | ||
Max. PV ISC (A) | 44+44+44 | ||
No.of MPPT Trackers | 3 | ||
No.of Strings Per MPPT Tracker | 2+2+2 | ||
AC Output Data | |||
Rated AC Output Active Power (W) | 12000 | 14000 | 16000 |
Max AC Output Active Power (W) | 13200 | 15400 | 17600 |
Rated AC Output Current (A) | 54.5/52.2 | 63.6/60.9 | 72.7/69.6 |
Max AC Output Current (A) | 60/57.4 | 70/67 | 80/76.5 |
Max. Continuous AC Passthrough (A) | 100 | ||
Peak Power (off grid) | 2 times of rated power, 5 S | ||
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||
Power Factor | 1 | ||
Output Frequency and Voltage | 50/60Hz; L/N/PE 220/230Vac | ||
Grid Type | Single Phase | ||
Total Harmonic Distortion (THD) | <3% (of nominal power) | ||
DC Current Injection | <0.5% 1n | ||
Efficiency | |||
Max. Efficiency | 97.60% | ||
Euro Efficiency | 96.50% | ||
MPPT Efficiency | 99.90% | ||
Integrated | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection | ||
Over Voltage Category | DC Type II/AC Type III | ||
Certifications and Standards | |||
Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 | ||
Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
General Data | |||
Operating Temperature Range (℃) | -45~60℃, >45℃ Derating | ||
Cooling | Smart Cooling | ||
Noise (dB) | ≤30 dB | ||
Communication with BMS | RS485; CAN | ||
Weight (kg) | 48.5 | ||
Cabinet Size (WxHxD mm) | 464×763×282 (Excluding Connectors and Brackets) | ||
Protection Degree | IP65 | ||
Installation Style | Wall-mounted | ||
Warranty | 5 Years (10 Years Optional) | ||
