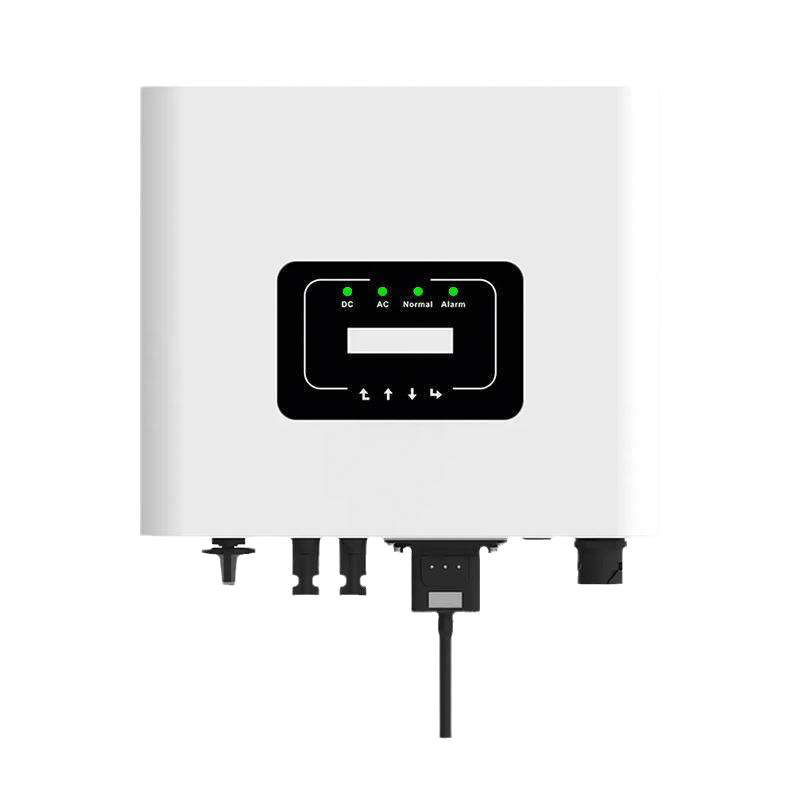

Solar Inverter
Input Voltage: 80V-550V
Output Voltage: 220V/230V
Output Current: 15.2-28.7A
Output Frequency: 50/60Hz
Output Type: Single
Type: DC/DC Converters
Inverter Efficiency: 97.5%

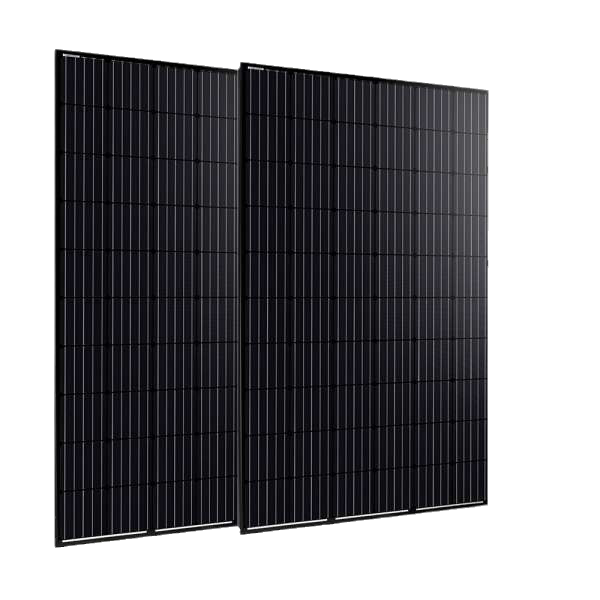

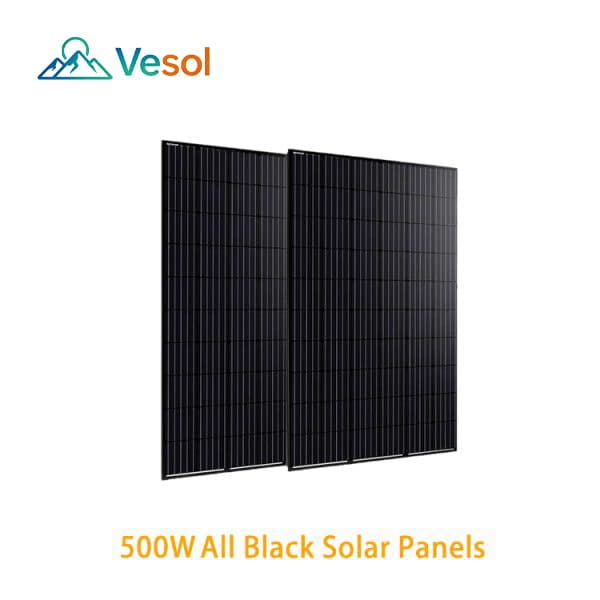

All Black Solar Panel
1. 500W All Black Mono Facial
2. Half Cell
3. SIZE:2094 X 1134 X 35MM(25 Year Warranty)
4. (MOQ:1 Pallet 31pcs/Pallet)

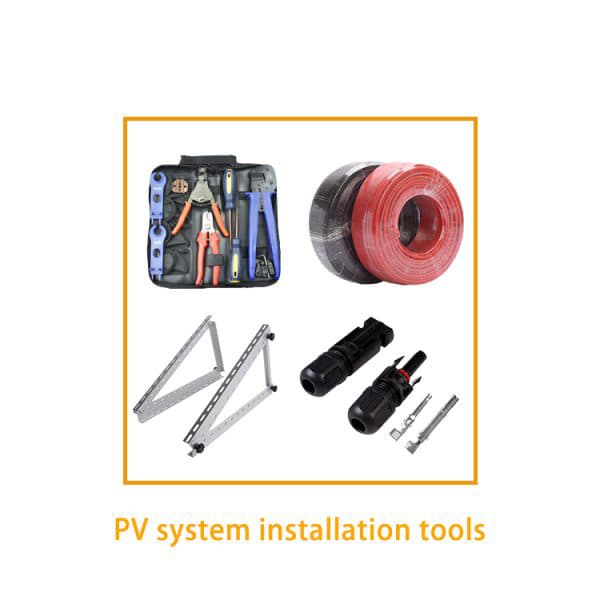

PV system installation tools
1. Disassemble Tool
2. MC3 MC4 Crimper
3. Wire Cable Cutter & Stripper
4. MC4 Connector Assembly

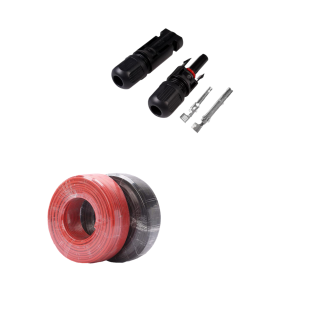

MC4 Connector:
1. Rated Current: 30A
2. Rated Voltage: 1500VDC
PV Cable:
1. AC Cable
2. DC Switches
3. AC Breaker

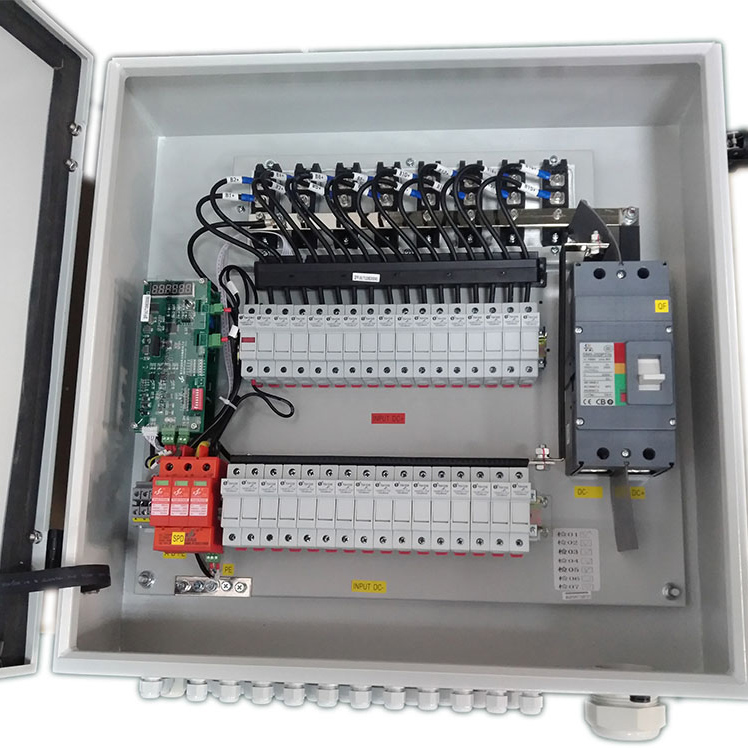

4. AC/DC Combine Box
5. PV Cable 4MM2 6MM2

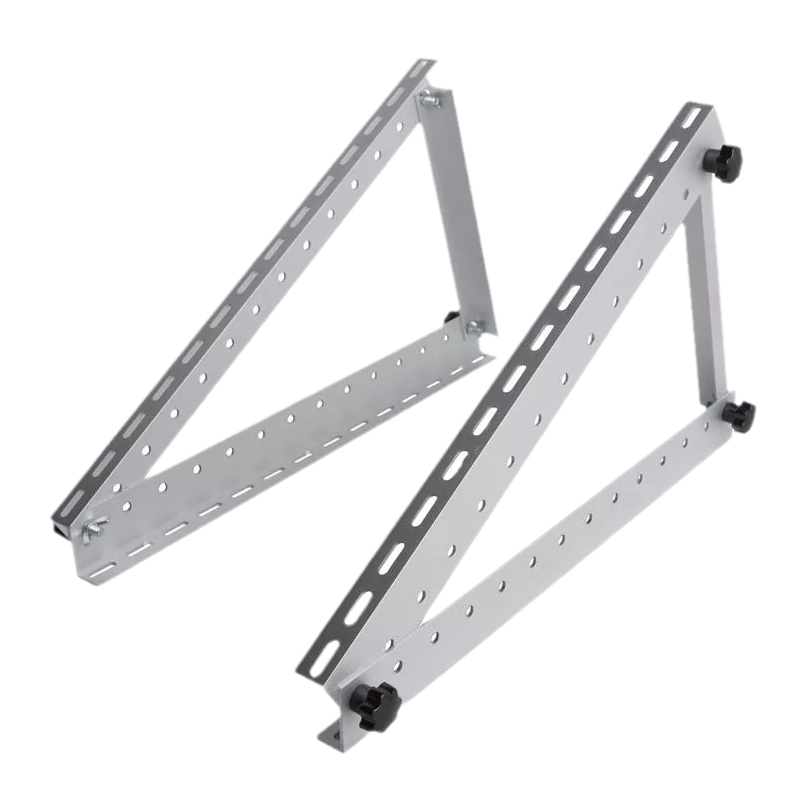

Mounting Structure
1. Ground Solar Mounting System

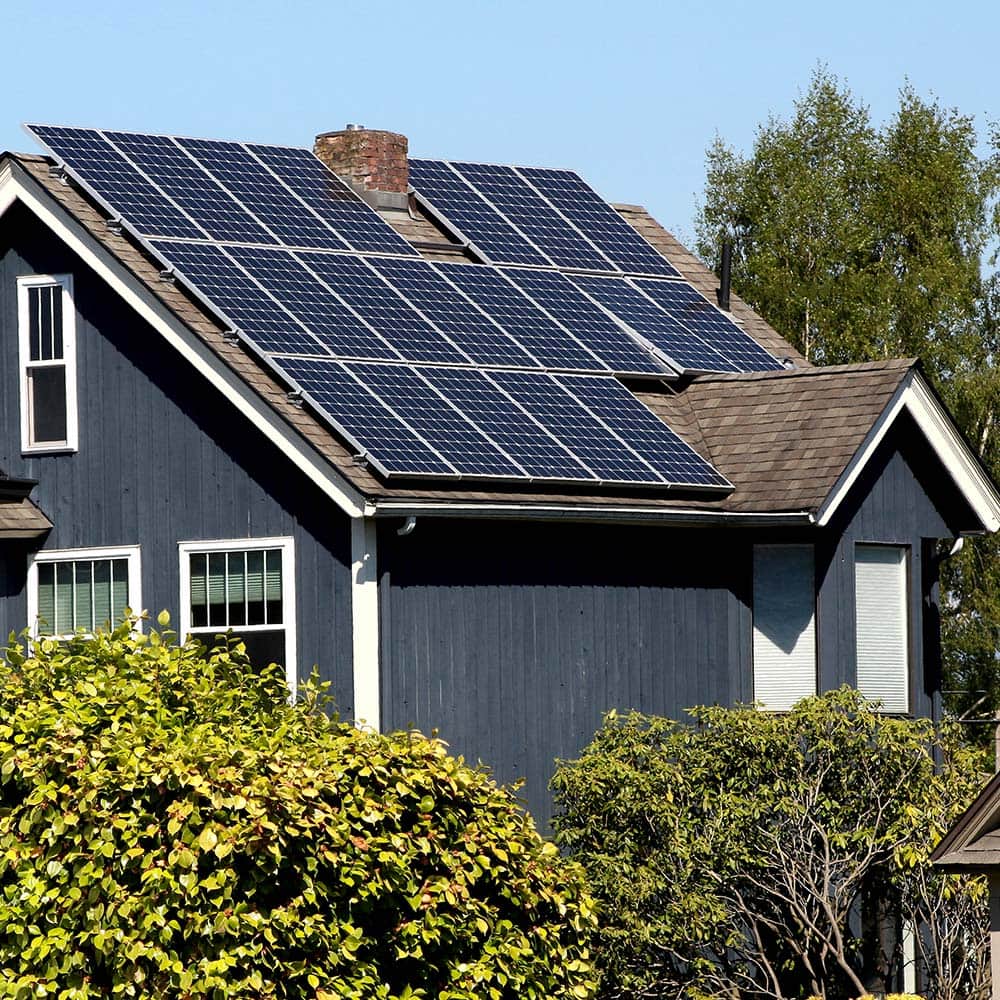

2. Residential Roof(Pitched Roof)
3. Car Parking Solar Mounting System
4. Vertical Wall Solar Mounting System
5. Commercial Roof(Flat Roof&Workshop Roof)
6. All Aluminum Structure Solar Mounting System

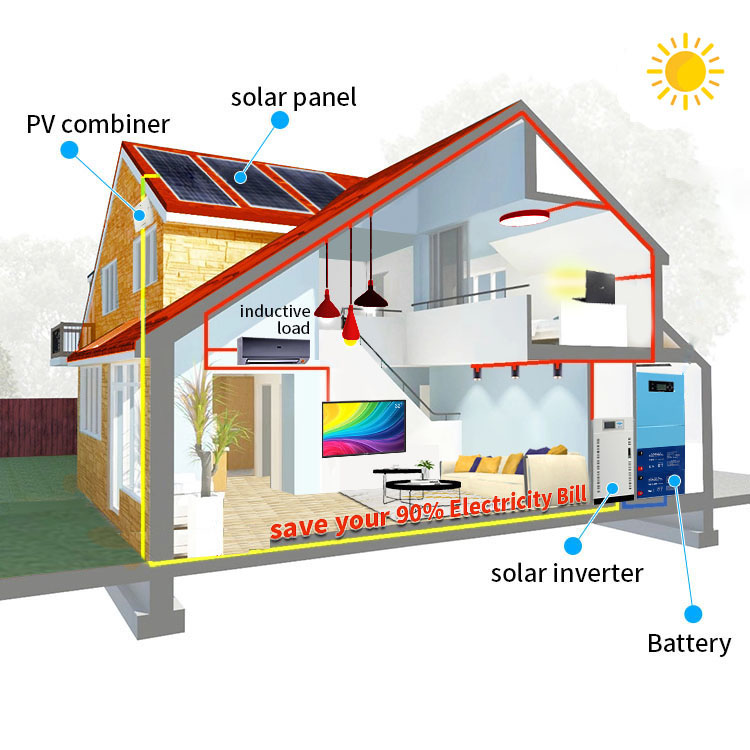

How to install

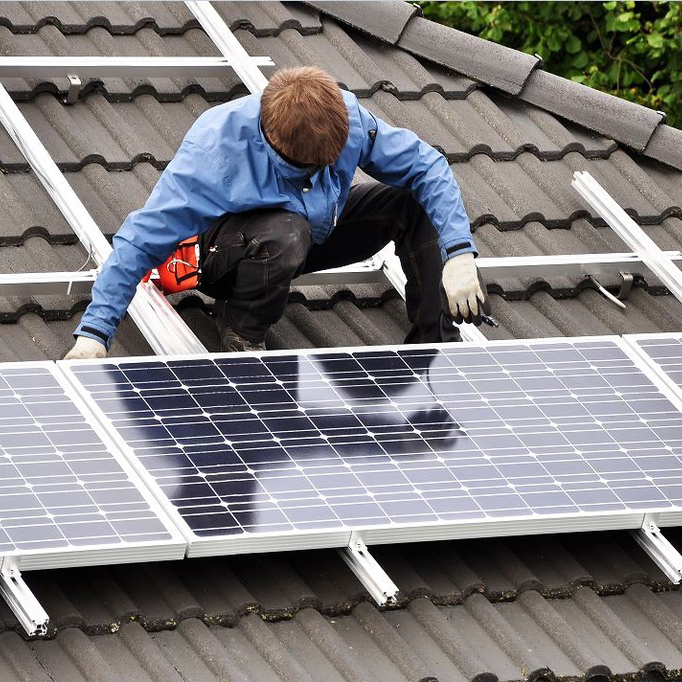

1. Install the brackets

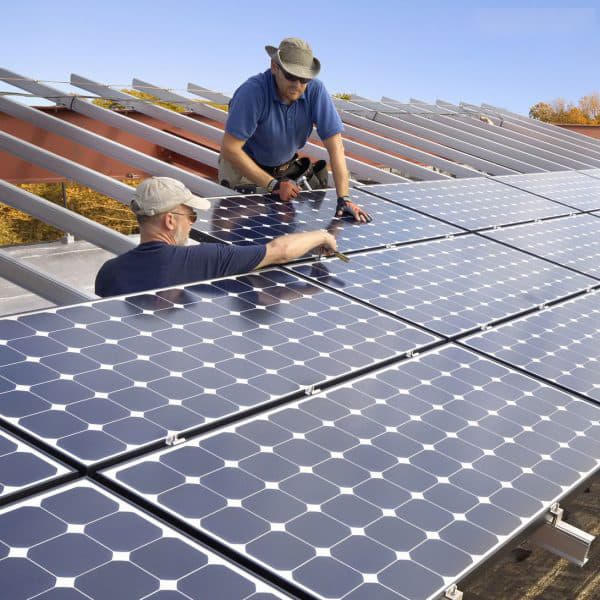

2. Install the PV components
3. PV Junction Box

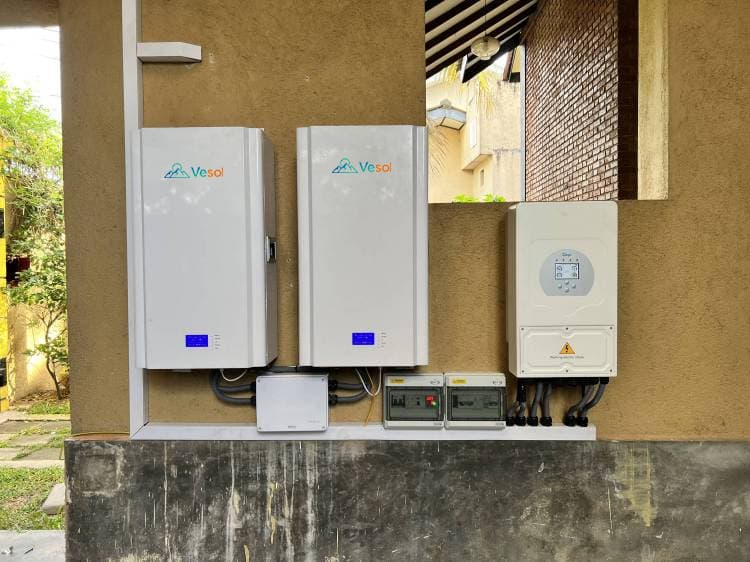

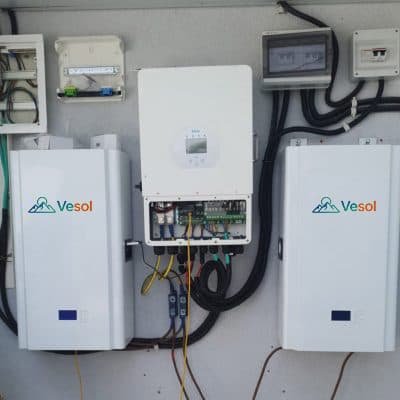

4. Inverter and Battery
Vesol advantage:
1.Intelligent and efficient：
- Storage of surplus electricity, improve the use rate of PV power .
- PV and mains can charge the battery
- Flexible configuration of lead-acid and lithium-ion batteries
- All in one design: charging, control , inverter
- Compatible with off-grid and on-grid modes
2.Flexible operation：
- Various communication ：Wi-Fi/Ethernet/GPRS/RS485
- Peak and valley time can be set, automatic peak cutting and valley filling.
- Remote control by computer or phone
- LCD display,easy operation
3. Stable and reliable.
- High protectionand A grade battery cell
- Smart BMS to ensure battery life
- Heat dissipation, reduce failure rate
- 4.EU/US MARKET AVAILABLE
- Completely system , high transformation efficiency,
- More than 6000 cycle life .
- 48V low voltage battery, transformer isolation design
What can Vesol do?
- High Quality Products
- DDP Service
- Friendly and Professional Customer Service
- Solar system solution design
- Solar inverter, lithium battery storage system also are available.
- Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )

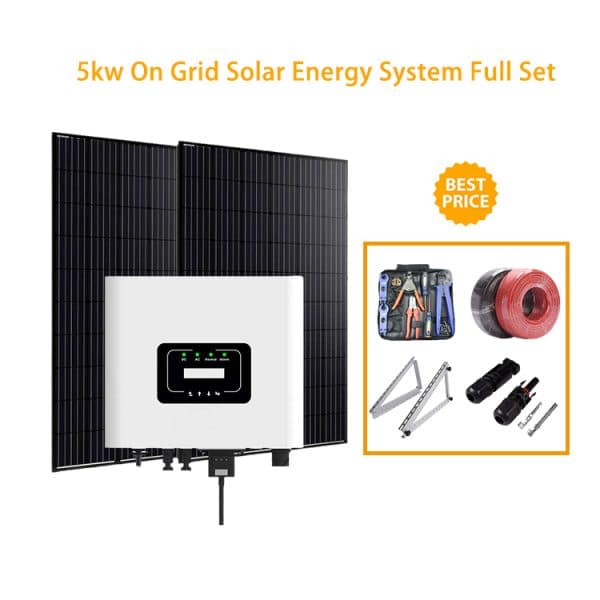

| Vesol 5KW On Grid Solar Energy System | |||||
| Parameters | Model | DW01LV-5KW-10 LP1-EU/US | DW01LV-8KW-20 LP1-EU/US | DW01LV-12KW-30 LP1-EU/US | |
| Solar Panel Specific | Model | DW-SP-500 | DW-SP-500 | DW-SP-500 | |
| Maximum Power（Wp） | 500 | 500 | 500 | ||
| Open-Circuit Voltage(Voc)(V) | 51.01 | 51.01 | 51.01 | ||
| Operating Current (Imp)（A） | 11.68 | 11.68 | 11.68 | ||
| Short-Circuit Current (Isc)（A） | 12.46 | 12.46 | 12.46 | ||
| Quantity | Pcs | 10 | 16 | 24 | |
| Size(mm) | 2220*1102*35 | ||||
| Weight(KG) | 27 | ||||
| Warranty time | 25 years | ||||
| Certificate | IEC61215:2016;IEC61730-1/-2:2016; | ||||
Inverter | ||||
Product name | 5kw On-Grid Solar Inverter | |||
Model Number | SUN-5K-G04 | |||
Nominal Output Voltage | 220V 230V | |||
MPPT Operating Range | 70-500V | |||
MPPT Efficiency | >99% | |||
Topology | Transformerless | |||
Running Temperature | -25 – 65℃, >45℃ derating | |||
Noise Emission (Typical) | <35 dB | |||
Ingress Protection | IP65 | |||
Display | LCD1602 | |||
