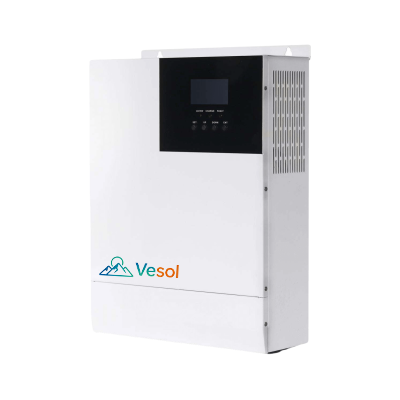

Solar Inverter
Model Number: 5kw on grid solar inverter*3
Max. Efficienct: 99%
Input Voltage: 160~450V
Communication: RS485/CAN
Operating Temperature Range (℃): -45~60℃, >45℃
Cooling: Smart cooling
Output Voltage: 220V/230V/240V

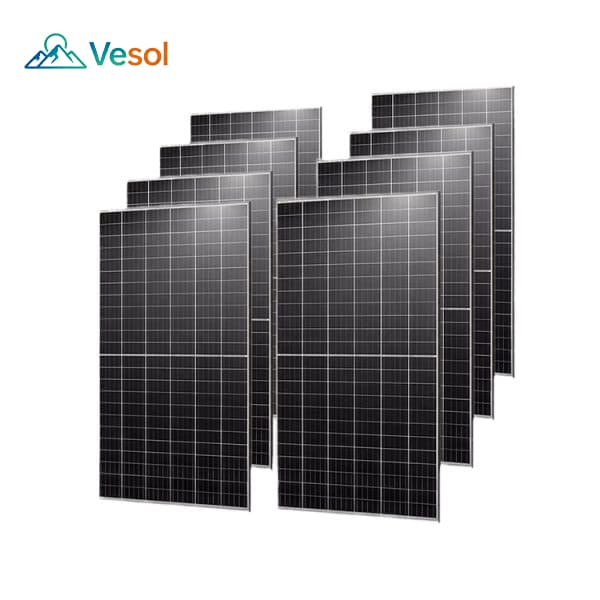

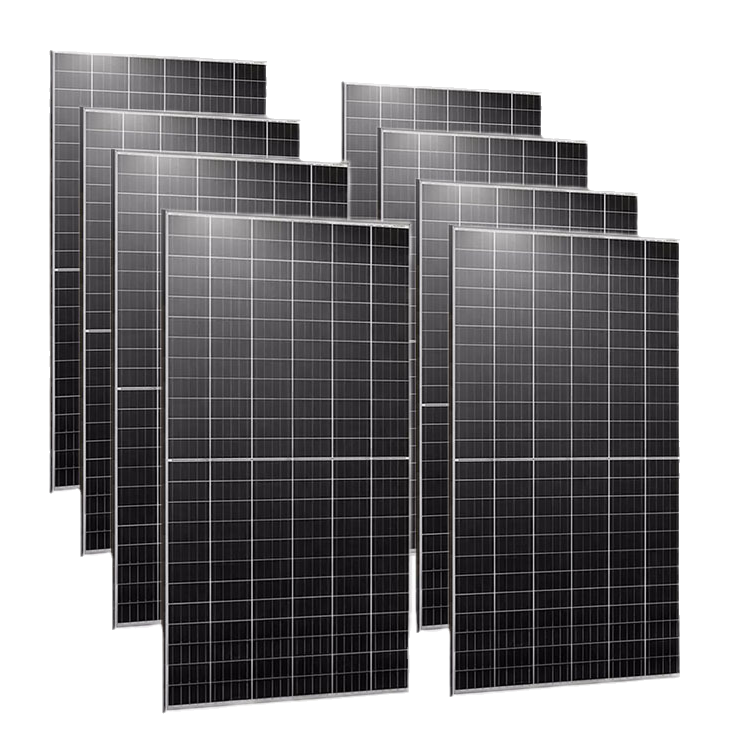

All Black Solar Panel
1. 500W Mono Solar Panel*60
2. Half Cell
3. Warranty: 10 Years
4. Brand:,JA, Longi, Jinko, Trina As Required
5. All Black Solar Panel Can be Supplied

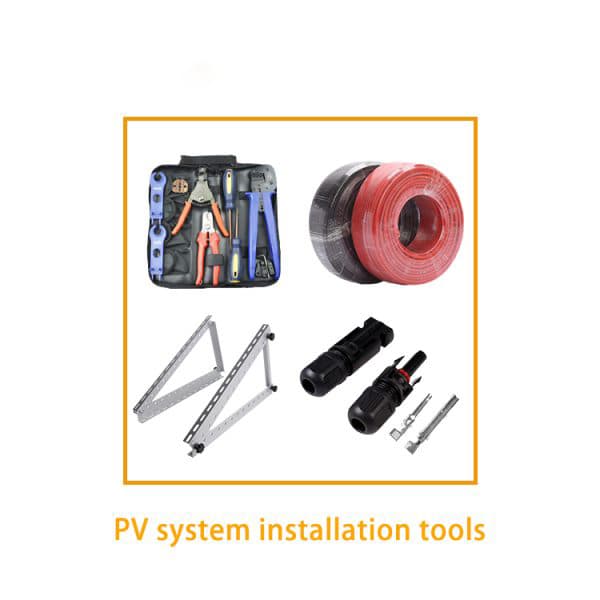

PV system installation tools
1. Disassemble Tool
2. MC3 MC4 Crimper
3. Wire Cable Cutter & Stripper
4. MC4 Connector Assembly

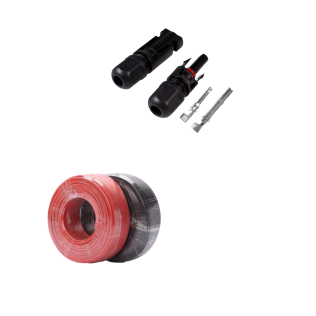

MC4 Connector:
1. Rated Current: 30A
2. Rated Voltage: 1500VDC
PV Cable:
1. AC Cable
2. DC Switches
3. AC Breaker
4. AC/DC Combine Box
5. PV Cable 4MM2 6MM2

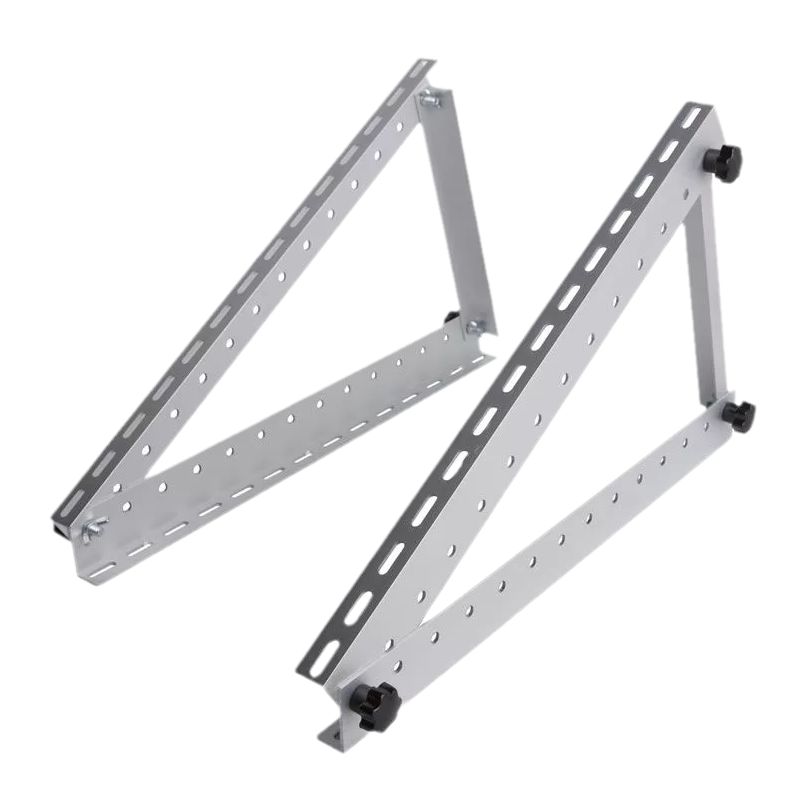

Mounting Structure
1. Ground Solar Mounting System

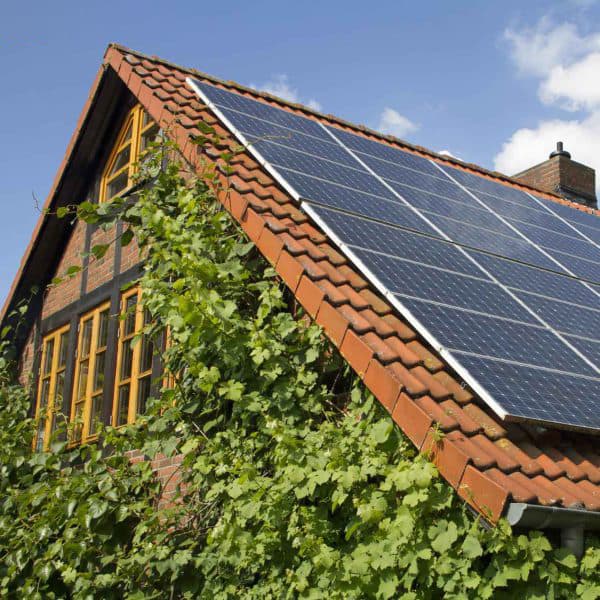

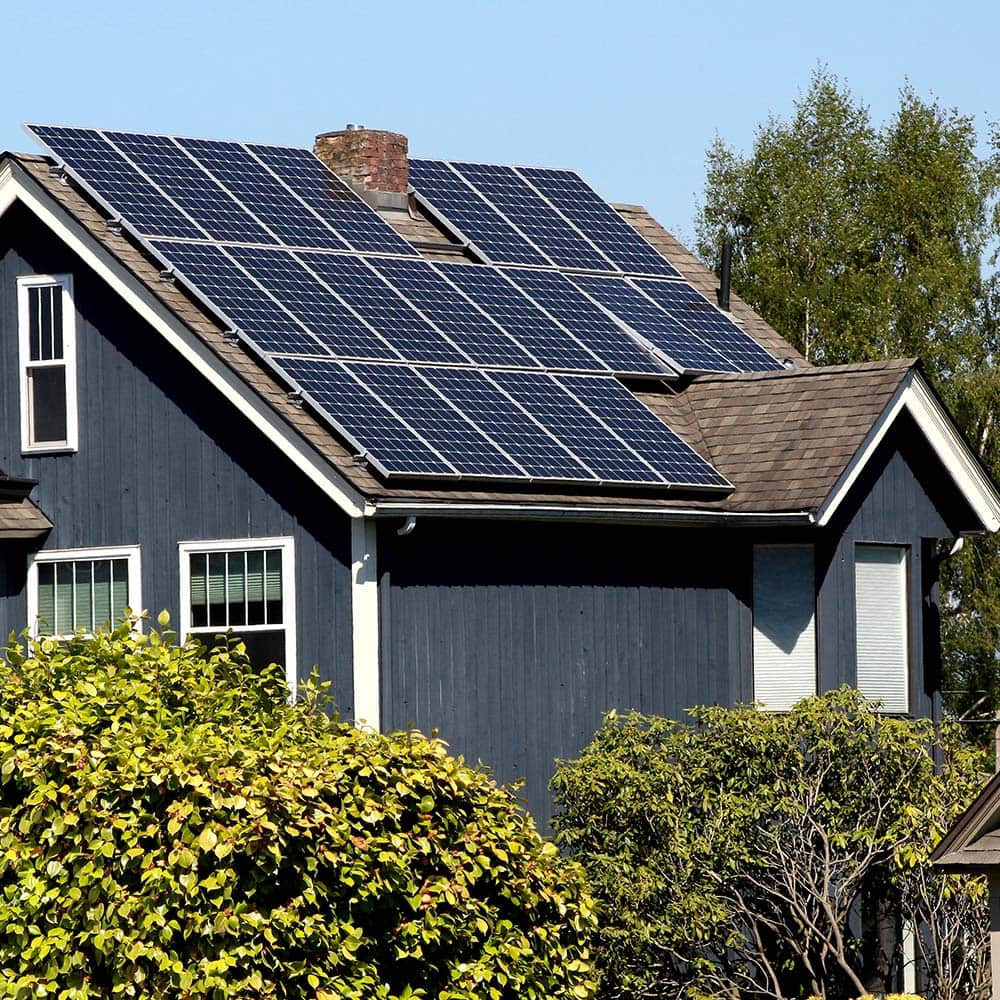

2. Residential Roof(Pitched Roof)
3. Car Parking Solar Mounting System
4. Vertical Wall Solar Mounting System
5. Commercial Roof(Flat Roof&Workshop Roof)
6. All Aluminum Structure Solar Mounting System

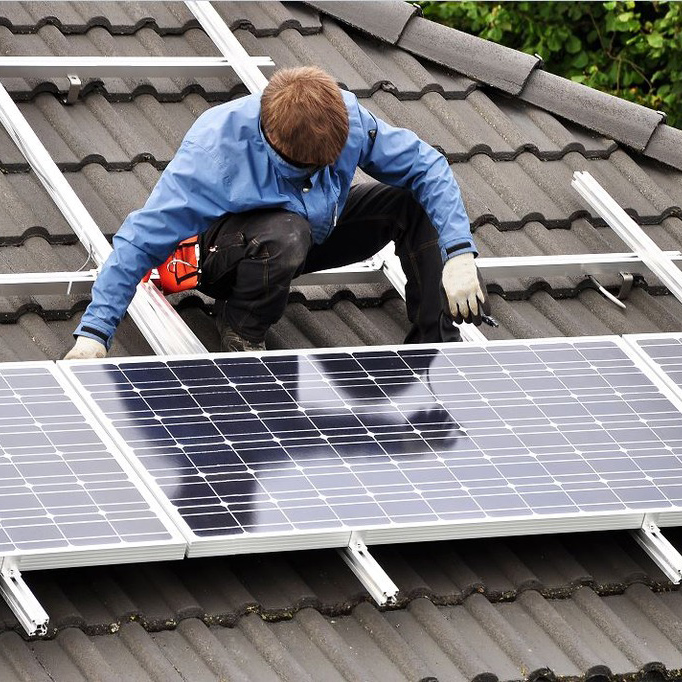

How to install
1. Install the brackets
2. Install the PV components

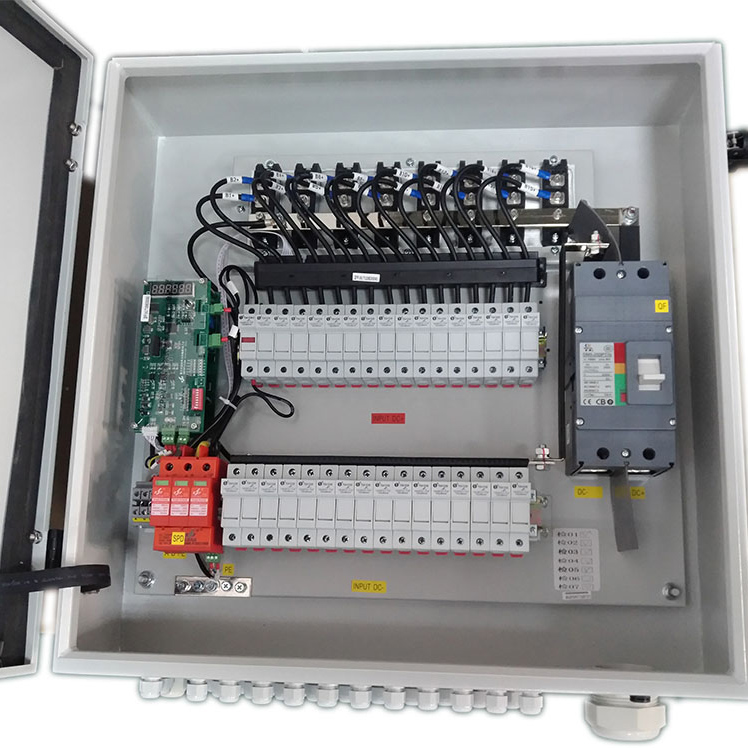

3. PV Junction Box

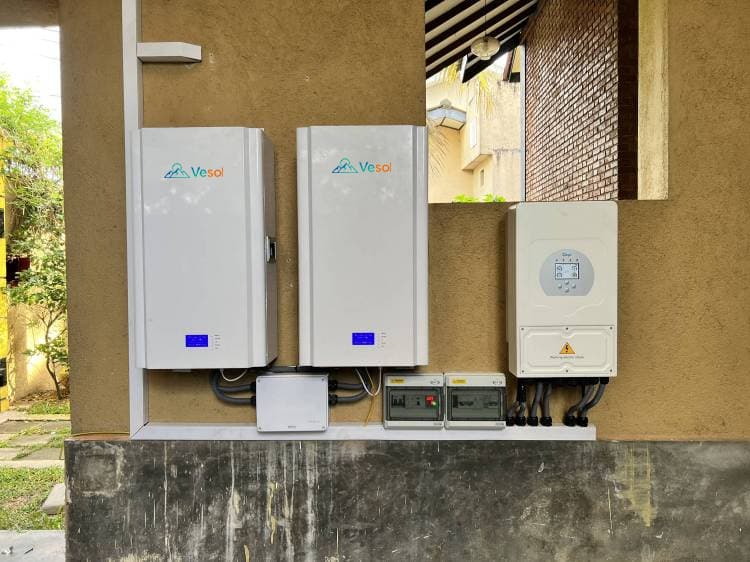

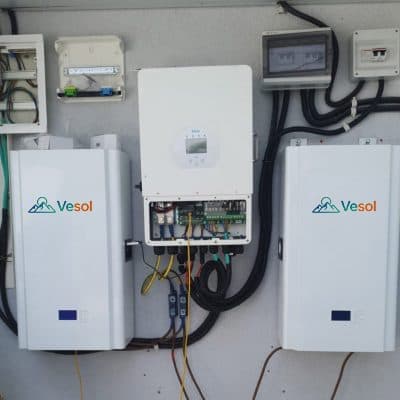

4. Inverter and Battery
Vesol advantage:
1.Intelligent and efficient：
- Storage of surplus electricity, improve the use rate of PV power .
- PV and mains can charge the battery
- Flexible configuration of lead-acid and lithium-ion batteries
- All in one design: charging, control , inverter
- Compatible with off-grid and on-grid modes
2.Flexible operation：
- Various communication ：Wi-Fi/Ethernet/GPRS/RS485
- Peak and valley time can be set, automatic peak cutting and valley filling.
- Remote control by computer or phone
- LCD display,easy operation
3. Stable and reliable.
- High protectionand A grade battery cell
- Smart BMS to ensure battery life
- Heat dissipation, reduce failure rate
- 4.EU/US MARKET AVAILABLE
- Completely system , high transformation efficiency,
- More than 6000 cycle life .
- 48V low voltage battery, transformer isolation design
What can Vesol do?
- High Quality Products
- DDP Service
- Friendly and Professional Customer Service
- Solar system solution design
- Solar inverter, lithium battery storage system also are available.
- Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )

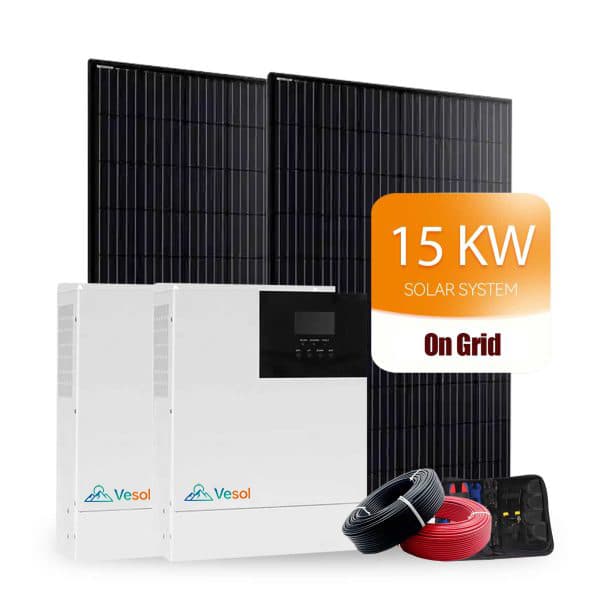

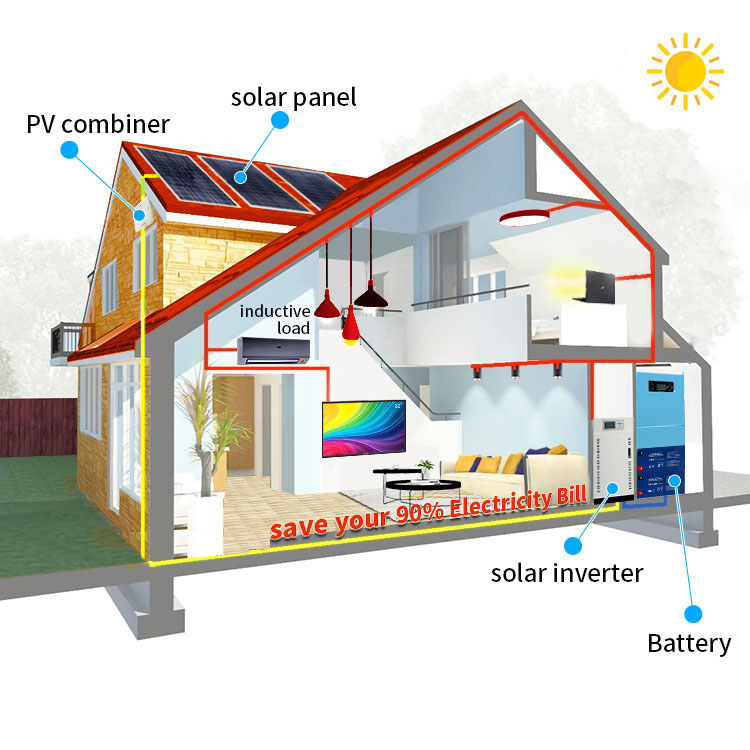

| 15Kw On Grid Solar Power System Components | |||
| Item | Name | Description | Quantity |
| 1 | Solar Panel | 500w Solar Panel | 60pcs |
| 2 | Inverter | 15kw On Grid Solar Inverter | 1 set |
| 3 | PV Combiner Box | 6 Inputs 2 output | 1 pc |
| 4 | Charger Controller | 192V 100A (MPPT /PWM) | 1 pc |
| 5 | Solar Mounting Structure | Roof/Ground Install (Customized) | 1 set |
| 6 | PV Cable | 4 mm2 DC PV Cable | 800m |
| 7 | MC4 | MC4 Connector | 20prs |
| 8 | Standard Wooded Package + System Connecting Drawings (Easy Installing) | ||
| 9 | System Capacity could be adjustable according customer’s situation | ||
